Gathering Feedback on MSR's Household Water Treatment System

;

Through a grant from Elrha's Humanitarian Innovation Fund (HIF), MSR Global Health is developing an exciting water treatment system designed to bring safe water to households in the developing world. After developing early prototypes, our team sent the treatment system to aid workers for feedback. The following is a look at how we developed the system, the feedback received, and next steps for success. This is the fourth and final story in a series of updates on MSR’s household water treatment series. For additional history on this project, see previous HIF blog stories:

• Bringing Safe Water to Households in the Developing World
• Snapshot: MSR’s Decades of R&;D in Water Treatment
• Engineering MSR’s Next-Generation Household Water Purifier

A Simple, Effective Solution for the Developing World

According to the World Health Organisation, diarrheal diseases take the lives of more than half a million children around the world each year, making it the second leading cause of death in children under five. Simply improving access to safe drinking water could reduce these deaths. Unfortunately, access to safe water remains severely limited.

While the challenge may seem straightforward, the reality of developing one solution for the world’s varied environments is quite challenging. Previous attempts to create a single water treatment solution that meets the needs of varied environments have either failed to meet affordability requirements, don’t treat an adequate amount of water, or are not effective against all pathogens.

The MSR Global Health team set out to tackle the issue head-on. Our solution: a next-generation household drinking water treatment system (HWTS) for the developing world that would address all these issues.

MSR Global Health’s Water Treatment Solution

MSR’s HWTS consists of two stacked reservoirs separated by a two-stage filter. A hybrid of two technologies, the two-stage filter combines ceramic filtration and chlorine treatment—ceramic for filtering out parasites, bacteria and particulate; and chlorine for eliminating viruses.

The HWTS uses gravity to draw the contaminated water from the top reservoir and through the flat ceramic filter. Meticulously designed for optimal flow rate, low cost, and durability, the flat ceramic filter removes what are considered the “larger” contaminants on the microscopic scale.

After passing through the ceramic filter, the water is channelled into a cartridge containing a chlorine tablet, which doses the water to eliminate viruses (which are too small for filters to remove). The chlorine tablet dissolves over time, and an automatic shutoff feature alerts the user when the chlorine is dissolved and requires replacement.

Gathering Early User Feedback

After manufacturing a small batch of HWTS prototypes, the MSR Global Health team distributed the devices to aid workers in targeted areas to gather feedback on a range of system attributes. This real-world feedback provided valuable insight on the HWTS’s design and function.

For example, aid workers shared that users were not confident that they assembled the system correctly, suggesting that additional training or instruction is necessary to improve user confidence in the system.

The MSR Global Health team has already made updates to the current prototype with this feedback. The team is also making updates on the chlorine dosing system to ensure consistent levels are produced over the many months of use.

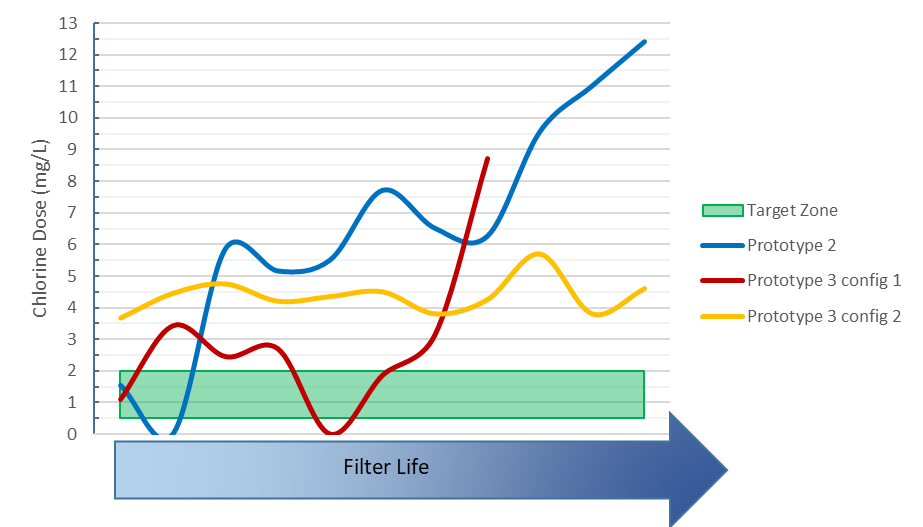

The target for consistent chlorine dosing is between 0.5 and 2.0ppm of free available chlorine. Earlier prototypes were achieving this target range early in the filter’s life, but would gradually increase dosage to levels as high as 12.5ppm. At 12.5ppm, the chlorine concentration is more noticeable to the user, reducing the likelihood that they’ll enjoy drinking it and adopt the device.

Advancements in later prototypes have drastically improved performance, maintaining consistent levels of chlorine that are closer to the target dose range. Still, additional work is needed to further decrease the chlorine concentration. After prototype validation is complete, field trials will be conducted on the Household Water Treatment System for final collection of user feedback.
